COCO dataset example¶
Set Up¶
Imports¶
import pathlib
import random
import matplotlib.pyplot as plt
import numpy as np
import torch
import torchvision.transforms.v2.functional as TVF
from torch.utils.data import DataLoader
from torchvision import datasets, tv_tensors
from torchvision.transforms import v2 as tv_transforms
from torchvision.tv_tensors._dataset_wrapper import wrap_dataset_for_transforms_v2 as tv_wrap_dataset_for_transforms_v2
from torchvision.utils import draw_bounding_boxes, draw_segmentation_masks
from torchaug import ta_tensors
from torchaug import transforms as ta_transforms
from torchaug.data.dataloader import default_collate
from torchaug.data.dataset import wrap_dataset_for_transforms_v2
Utils functions¶
#### visualization function tools
def plot(imgs, row_title=None, **imshow_kwargs):
if not isinstance(imgs[0], list):
# Make a 2d grid even if there's just 1 row
imgs = [imgs]
num_rows = len(imgs)
num_cols = len(imgs[0])
_, axs = plt.subplots(nrows=num_rows, ncols=num_cols, figsize=(10, 5), squeeze=False)
for row_idx, row in enumerate(imgs):
for col_idx, img in enumerate(row):
boxes = None
masks = None
if isinstance(img, tuple):
img, target = img
if isinstance(target, dict):
boxes = target.get("boxes")
masks = target.get("masks")
elif isinstance(target, (tv_tensors.BoundingBoxes, ta_tensors.BoundingBoxes)):
boxes = target
else:
raise ValueError(f"Unexpected target type: {type(target)}")
img = TVF.to_image(img)
if img.dtype.is_floating_point and img.min() < 0:
# Poor man's re-normalization for the colors to be OK-ish. This
# is useful for images coming out of Normalize()
img -= img.min()
img /= img.max()
img = TVF.to_dtype(img, torch.uint8, scale=True)
if boxes is not None:
img = draw_bounding_boxes(img, boxes, colors="yellow", width=3)
if masks is not None:
img = draw_segmentation_masks(img, masks.to(torch.bool), colors=["green"] * masks.shape[0], alpha=0.65)
ax = axs[row_idx, col_idx]
ax.imshow(img.permute(1, 2, 0).numpy(), **imshow_kwargs)
ax.set(xticklabels=[], yticklabels=[], xticks=[], yticks=[])
if row_title is not None:
for row_idx in range(num_rows):
axs[row_idx, 0].set(ylabel=row_title[row_idx])
plt.tight_layout()
def uncollate_batch(batch):
imgs = batch[0]
targets = batch[1:][0]
decollate_imgs = imgs.to_samples()
for key, elems in targets.items():
if key == "boxes":
decollate_bbox = elems.to_samples()
elif key == "masks":
decollate_mask = elems.to_samples()
elif key == "labels":
decollate_labels = elems.to_samples()
decollate = [
(
decollate_imgs[i],
{
"boxes": decollate_bbox[i],
"masks": decollate_mask[i],
"labels": decollate_labels[i],
},
)
for i in range(len(decollate_imgs))
]
return decollate
Dataset creations¶
ROOT = pathlib.Path("your_path") / "coco" # replace by your path
IMAGES_PATH = str(ROOT / "val2017")
ANNOTATIONS_PATH = str(ROOT / "annotations" / "instances_val2017.json")
Torchaug¶
torchaug_dataset = datasets.CocoDetection(IMAGES_PATH, ANNOTATIONS_PATH, transforms=ta_transforms.Resize([224, 224]))
torchaug_dataset = wrap_dataset_for_transforms_v2(torchaug_dataset, target_keys=("boxes", "labels", "masks"))
torchaug_dataloader = DataLoader(torchaug_dataset, batch_size=5, collate_fn=default_collate)
Torchvision¶
torchvision_dataset = datasets.CocoDetection(
IMAGES_PATH, ANNOTATIONS_PATH, transforms=tv_transforms.Resize([224, 224])
)
torchvision_dataset = tv_wrap_dataset_for_transforms_v2(torchvision_dataset, target_keys=("boxes", "labels", "masks"))
Transform batch¶
seed = 203 # set seed for reproducibility
Torchaug¶
torch.manual_seed(seed)
random.seed(seed)
np.random.seed(seed)
torchaug_transform = ta_transforms.SequentialTransform(
[
ta_transforms.RandomHorizontalFlip(p=0.5),
ta_transforms.ColorJitter(0.4, 0.4, 0.4, 0.2),
ta_transforms.RandomResizedCrop(224),
],
transforms_attributes_override={
"inplace": True,
"batch_inplace": True,
"batch_transform": True,
"num_chunks": 2,
"permute_chunks": False,
},
)
batch = next(iter(torchaug_dataloader))
torchaug_transformed_batch = torchaug_transform(batch)
torchaug_transformed_batch_uncollated = uncollate_batch(torchaug_transformed_batch)
sanitized_torchaug_batch = ta_transforms.SanitizeBoundingBoxes()(torchaug_transformed_batch)
sanitized_torchaug_batch_uncollated = uncollate_batch(sanitized_torchaug_batch)
Torchvision¶
torch.manual_seed(seed)
random.seed(seed)
np.random.seed(seed)
batch = next(iter(torchaug_dataloader))
indices_flip = torchaug_transform.transforms[0]._get_indices_transform(5, "cpu")
params_color = torchaug_transform.transforms[1]._get_params(
batch[0], 2, (torch.tensor([0, 1, 2]), torch.tensor([3, 4]))
)
params_crop = torchaug_transform.transforms[2]._get_params(batch[0], 2, None)
torchvision_batch = [torchvision_dataset[i] for i in range(5)]
for idx in indices_flip:
torchvision_batch[idx] = tv_transforms.RandomHorizontalFlip(1)(torchvision_batch[idx])
for idxs, param_color in zip([[0, 1, 2], [3, 4]], params_color):
tv_transform_color = tv_transforms.ColorJitter(0.4, 0.4, 0.4, 0.2)
tv_transform_color._get_params = lambda x: param_color
for i, idx in enumerate(idxs):
tv_transform_color._get_params = lambda x: {
"fn_idx": param_color["fn_idx"],
"brightness_factor": float(param_color["brightness_factor"][i]),
"contrast_factor": float(param_color["contrast_factor"][i]),
"saturation_factor": float(param_color["saturation_factor"][i]),
"hue_factor": float(param_color["hue_factor"][i]),
}
torchvision_batch[idx] = tv_transform_color(torchvision_batch[idx])
for idxs, param_crop in zip([[0, 1, 2], [3, 4]], params_crop):
tv_transform_resized_crop = tv_transforms.RandomResizedCrop([224, 224])
tv_transform_resized_crop._get_params = lambda x: param_crop
for idx in idxs:
torchvision_batch[idx] = tv_transform_resized_crop(torchvision_batch[idx])
sanitized_torchvision_batch = [tv_transforms.SanitizeBoundingBoxes()(img) for img in torchvision_batch]
Visualization¶
Torchaug¶
plot(
[
[torchaug_dataset[i] for i in range(5)],
torchaug_transformed_batch_uncollated,
sanitized_torchaug_batch_uncollated,
],
row_title=["torchaug dataset", "torchaug transformed", "torchaug sanitized"],
)

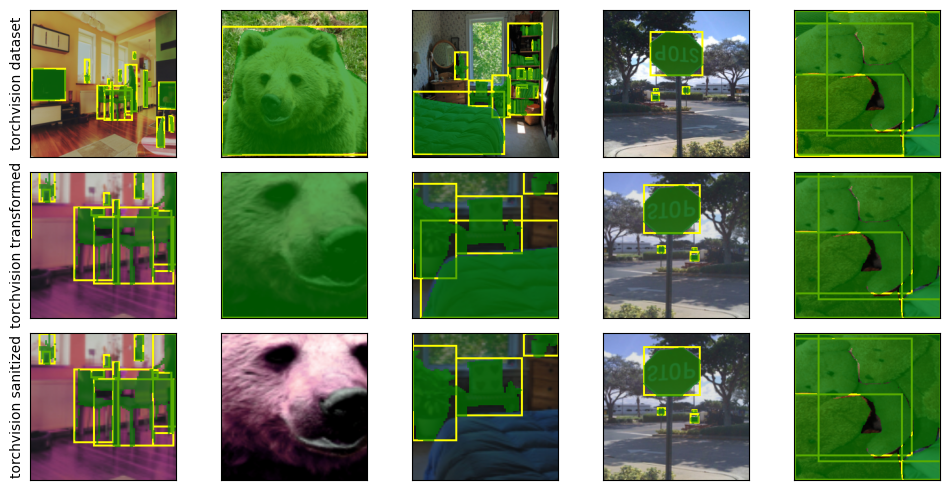

Torchvision¶
plot(
[[torchvision_dataset[i] for i in range(5)], torchvision_batch, sanitized_torchvision_batch],
row_title=["torchvision dataset", "torchvision transformed", "torchvision sanitized"],
)

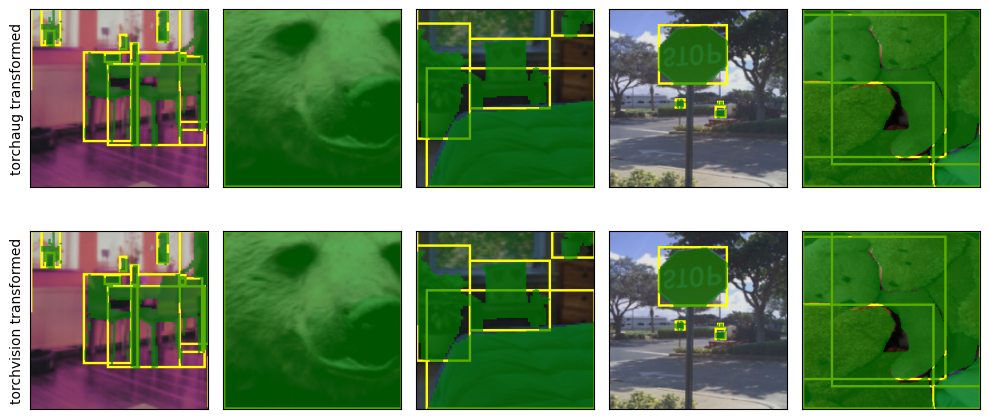

Torchaug and Torchvision¶
plot(
[torchaug_transformed_batch_uncollated, torchvision_batch],
row_title=["torchaug transformed", "torchvision transformed"],
)

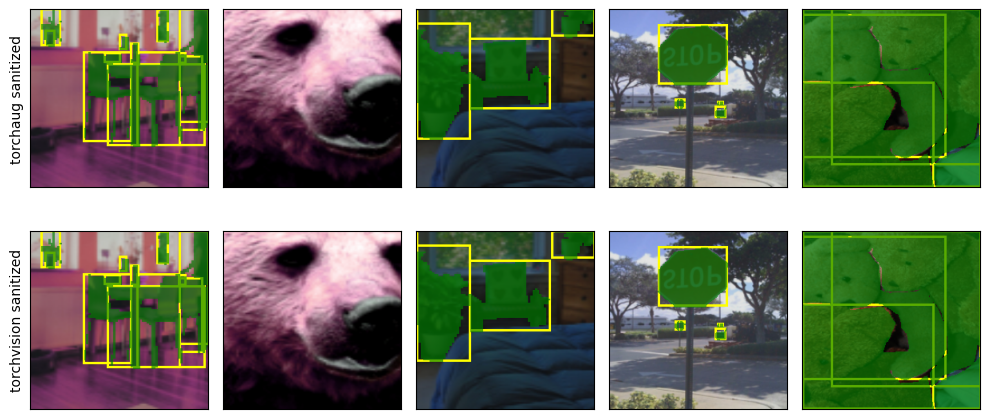

plot(
[sanitized_torchaug_batch_uncollated, sanitized_torchvision_batch],
row_title=["torchaug sanitized", "torchvision sanitized"],
)
